Allen avionics VFL4P0 low pass filter 4 mhz 75ω
ALLEN AVIONICS VFL4P0 LOW PASS FILTER 4 MHz 75

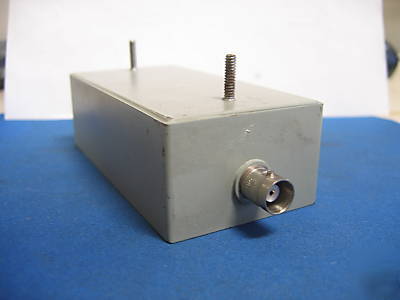

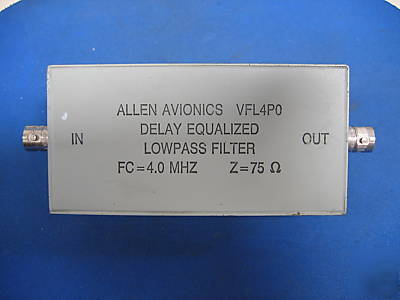

Description: Unit is an Allen Avionics VFL4P0 delay equalized lowpass filter, FC=4.0 MHz, 75 .
Designed for Analog and Digital Video Filtering
Band Limiting of Video SignalsVery Low Distortion Due to the Tight Control of Delay in the Passband
Fast Transition from Passband to Stopband along with Good Stopband Rejection to over 100 MHz
Also Used as Anti-Aliasing Pre Filters befor Analog to Digital Converters
Maximum Delay Variation = 3% to -.25 dB Frequency
Maximum Passband Ripple = .125 dB. 10 KHz to Passband end
Maximum Insertion Loss < 1 dB at 10 KHz
VFL Size: 4" x 2" x 1-1/4" in metal cans with BNC Connectors
MVFL Size: 3" x 1-5/8" x 1/2" in metal can with terminals for PC mounting
Cosmetic Condition: Excellent.
