Pwm 2A 180° machine torch package - 25' leads, 2-2594
Thermal Dynamics PWM 2A Plasma Arc Welding Torch
PWM 2A 180 "Offset" Machine Torch Package with 25' (7.6m) Lead Set,
Mounting Barrel and Rack Assembly Installed. PWM 2A Plasma Arc
Performance Proven Replacement for Thermal Dynamics PWM 2A
Plasma Arc Welding Torch Package.
Thermal Dynamics part number: 2-2594.
We offer all replacement parts for Plasma Arc Welding PWM 2A Torches.
PWM 2A Plasma Torch Specifications:
- 180 Thermal Dynamics PWM 2A Machine Plasma Torch Body -
* 180 Degree Offset Head (Part No. 8-2097) Water Cooled
* Current Rating 75 Amps (DCSP)
* Coolant Requirements 2,000 BTU/hr (504 kcal/hr) 1/4 gpm @50 psi (0.9 ipm @ 3.7 kg/cm2)
* Torch Body and Barrel 18-1/4" (463mm) Long
* Offset Head from Center Line 13/16" (21mm)
* Handle Diameter 1-3/8" (35mm)
* Gear Rack Adjustment 7-1/8" (181mm) Min. to 15" (381mm) Max
Torch Package compatible with Thermal Dynamics PWM 2A Plasma Arc Welding Torch Packages and Ultima 150 Plasma Arc Welding Systems.

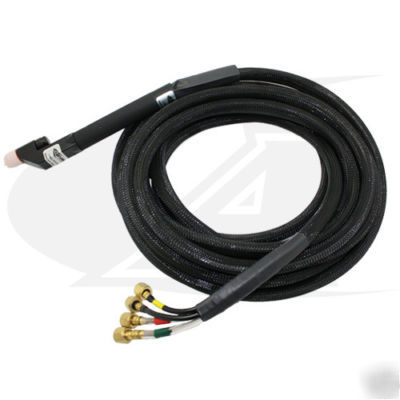

*Note: Image depicts 3A 180 Machine Torch Package with standard 25' lead set.
PWH/M 2A Plasma Arc Welding Torch Package Setup Guide/Instruction Manual
