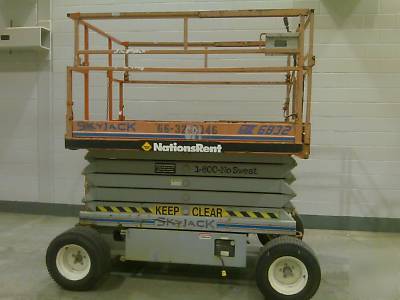

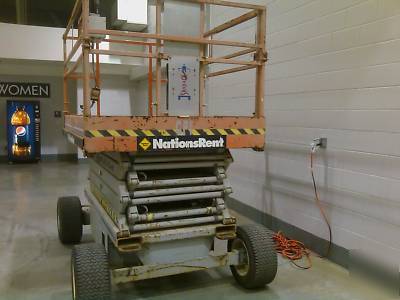

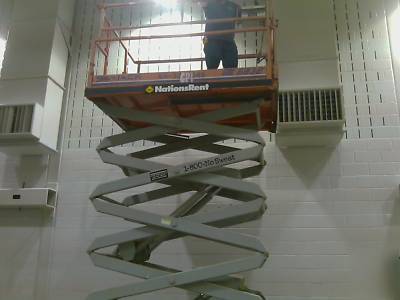

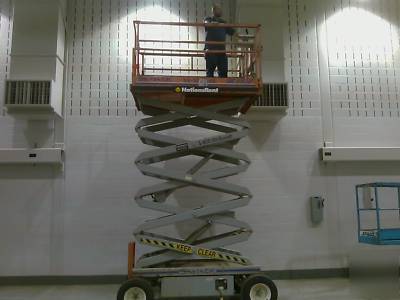

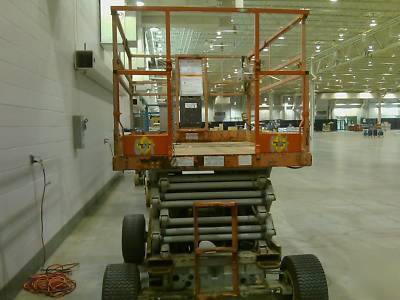

Skyjack 6832 electric scissor lift 29' - 36'
S CISSOR LIFTS CONVENTIONAL SERIES
The Wide Conventional Series DC Electric Scissor
Lifts offer high capacity, while boasting the largest
platforms in their class. Featuring variable speed rear
wheel hydraulic drive, the SJIII 6826 and SJIII 6832 offer
working heights up to 38 , capacities up to 1200 lbs, and
A standard 3 roll out extension deck can be secured
in multiple positions, and both models can be driven
at full height. Consistent with Skyjack s robust and
reliable design features, the Wide Conventional Series
DC Electric Scissor Lifts are built using Skyjack s
standard color coded and numbered wiring system.
Analog based controls with a relay based electrical
system ensures these units will maintain their industry
Turning Radius (Inside) 76 (1.9 m)
Turning Radius (Outside) 164 (4.2 m)
Lift Time (With Rated Load) 60 sec
Drive Speed (Stowed) 2 mph (3.2 km/h)
Drive Speed (Raised) 0.7 mph (1.1 km/h)
Maximum Drive Height Full Height
Capacity (Overall) 850 lbs (386 kg)
B Raised Platform Height 32 (9.8 m)
C Lowered Platform Height 55.5 (1.4 m)
E Overall Length 99.5 (2.5 m)
F Stowed Height (Rails Up) 99 (2.5 m)
G Stowed Height (Rails Down) 84 (2.1 m)
H Platform Width (Inside Dimension) 57 (1.4 m)
I Platform Length (Inside Dimension) 84 (2.1 m)
Variable speed, rear two wheel hydraulic drive

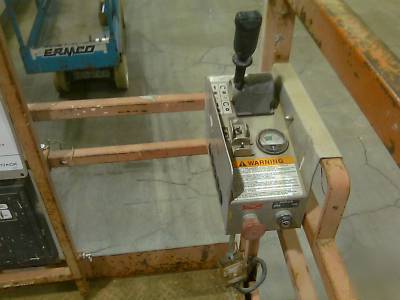

Proportional controls for drive & lift functions
3 (0.9 m) roll out extension deck
Low voltage battery protection
Color coded and numbered wiring system
110V AC outlet on platform with GFI
Tilt alarm with drive & lift cut-out
Forklift pockets and tie down/lift lugs
