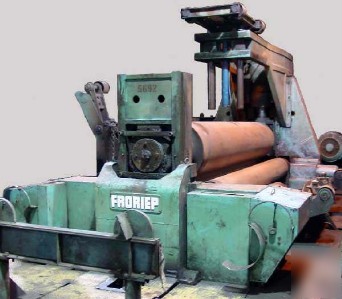

1-3/8" x 12' froriep hydraulic double pinch plate roll
1-3/8 X 12' FRORIEP HYDRAULIC DOUBLE PINCH PLATE ROLL
SERIAL .................................. 31994
MODEL ................................... DBH-12 X 1
YEAR NEW ................................ 1968
ORDER NUMBER ............................ 9144
AVAILABLE BENDING PRESSURE .............. 1,210,000 LBS
MAXIMUM BENDING CAPACITY ................ 1-3/8 x 12'
MAXIMUM WIDTH OF PLATE .................. 12'
IN PRE-BENDING POSITION ................. 1
MIDDLE POSITION OF THE ROLLS ............ 1-3/8
END PIECE WITH DEVIATING CURVATURE ...... 2-1/2
YIELD POINT OF MATERIAL, COLD ........... 70000 PSI
TOP ROLL BENDING FORCE .................. 600 TON
DIAMETER OF TOP ROLL .................... 26,771
DIAMETER OF THE TWO BOTTOM ROLLS ........ 14,960
BENDING SPEED PER MINUTE ................ 20/33 FT/MIN
HYDRAULIC ADJUSTMENT TO BOTTOM ROLL ..... YES
HYDRAULIC ADJUSTMENT TO TOP ROLL ........ YES
HYDRAULIC DROP END ...................... YES
OPERATORS CONSOLE ....................... YES
3-ROLL CONFIGURATION .................... YES
BACK UP ROLLS TO BOTTOM ROLLS ........... YES
PLATE SUPPORT SYSTEM, SIDE AND OVERHEAD . YES
INFEEDING POWER ROLLERS ................. 75'
MAIN MOTOR .............................. 94 HORSEPOWER
