> Hardinge conquest GT27 precision cnc lathe

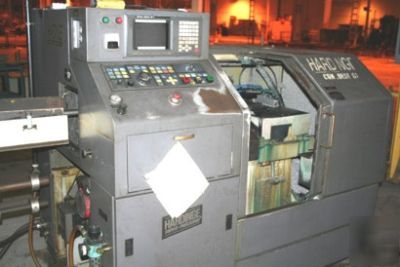

Hardinge conquest GT27 precision cnc lathe
SWING OVER WAY COVER........................11.76"
OVER TOOLING TOP PLATE......................2.654"
TRAVELS (X) AXIS...........................11.968"
(Z) AXIS...........................11.062"
DISTANCE SPINDLE TO TOP PLATE...............11.259"
SPINDLE CONFIGURATION.......................ANSI A2-4"
SPINDLE SPEED RANGE.........................1 - 6,000 RPM
5C COLLET SPINDLE...........................1 1/16"
COLLET CLOSER STROKE........................0.5"
SPINDLE MOTOR...............................5 HP
SQUARE SHANK TOOL SIZE......................0.5"
ROUND SHANK TOOL SIZE.......................0.75"
PRESENT ELECTRICS...........................220 V/3/60
HARDINGE 12 FT. HYDRAULIC BAR FEEDER (3 SLEEVES)
