> New est willem eprom programmer pic bios, shipfrom usa
New est willem eprom programmer pic bios, shipfrom usa

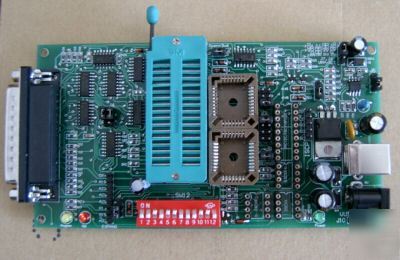

Introducing our newest Universal Willem EPROM programmer PCB SMD version PCB5.0. This board has many enhanced features, such as built-in PLCC32, FWH / LPC sockets, thus NO NEED to pay extra to purchase these optional adapters. The PCB layout is fully optimized and the digital circuitry is separated from the power supply circuit, thus reducing interference. High precision digital switching SMT ICs are used to control the Vpp circuit ( vs cheap regular transistor controlled), thus dramatically improves the burning accuracy and reliability by multitudes. Quality SMT components are used, for example, the high current tolerant coil is used to boost the robustness of the circuitry. Optional higher Vcc voltages (5.6v and 6.2v) will be available when an external AC power supply is used. This is very important when you want to smoothly and reliably burn those old CMOS and even older NMOS EPROM chips. This programmer can also read and burn EEPROM, FLASH, and Microcontroller (MCS-51, AVR and PIC family) chips. We also added software support for more Winbond chips !
This ready-to-go package includes the following items:
1. Willem Universal E(e)prom Programmer Board, PCB SMD version 5.0, fully assembled;
3. Optional DB25 and USB cable (If you need the cable set, just add additional $5 to the final price, we will gladly include it for you !);
this enhanced DualPower Willem programmer PCB5.0 package is posted...
27C64, 27C128, 27C256, 27C512, 27C010, 27C020, 27C040, 27C1001
27C080 (A19) , M27C801, M87C257
2764, 27128, 27256, 27512, 27010
-Via ICSP connector (you need an optional PIC adapter in order to program these newly added PICs)-
PIC12F629/675 , PIC16F630/676 , PIC12F635/683 , PIC16F636/684/688 , PIC16F72/73/74/76/77 , PIC16F737/747/767/777 , PIC16F87/88 , rfPIC12F675x , PIC16F785/PS200 , PIC16F716
PIC12C671 , PIC12C672 , PIC12CE673 , PIC12CE674 , PIC16C61/71 , PIC16C62/64/65/73 , PIC16C62A/62B/62C/63/63A/64A/65A/65B/66/67 , PIC16C72/72A/73A/74A/74B/76/77 , PIC16C620/620A/621/621A/622/622A , PIC16CE/623/624/625 , PIC16C710/711/712/716 , PIC16C773/774 , PIC16C745/765/923/924 , PIC16C925/926 , PIC16C554/556/557/558 , PIC16C432/433 , PIC16C717/770/771/781/782
-Add PIC microchip 12bit (FLASH memory)
Add Find and edit value OSCCAL (PIC12F629/675 , PIC16F630/676)
Add Edit config at address 0x2008,0x2009 (PIC12F635/683 , PIC16F636/684/688 , PIC16F785)
eprom PIC12C509JW , PIC16C505JW , PIC16C711JW , PIC16CE625JW
90S2333, 90S4433, 90S4414, 90S8515, 90S4434, 90S8535
i28F200,i28F400,i28F800,i28F160 (TSOP48)
SST49LF002A, SST49LF003A, SST49LF004A, SST49LF008A, PMC 49FL008T
SST49LF020, SST49LF040 W49V002A, W39V040A
W39V040FA, W39V040FAP, W39V040BP, W39V04OBPZ, W49V040FBPZ, W39V040FCP, W39V040FCPZ
W39V080AP, W39V080APZ, W39V080FAP, W39V080FAPZ (Newly added for software 0.98D8)
