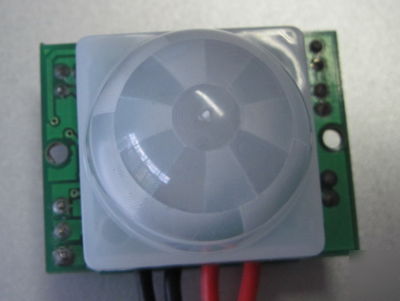

Passive pir sensor 12V dc power switch automation lamp
12V PIR Switch Motion Activated for Lamp...
- Maximum Instantaneous Current : 20A
- Micropower: quiescent current < 60 uA
- Time delay: 3-60 seconds ( can be adjusted , default: 3 s )
- Distance : 5 - 7 Meter ( can be adjusted )
- Trigger: L, Non-repeatable trigger / H, Repeat Trigger ( default )
- Turn off during daylight: Use CDS ( default: included , weld)
- Dimensions: 24 x 32 x 28 mm (0.945 x 1.26 x 1.1 inch)
- Work temperature: - 20 C ~ + 60 C
With PIR sensor, Fresnel lens, high sensitivity, sensor point of view big trigger the option of repeating and non-duplication of ultra-low static power consumption, ultra-small size. Reverse own protection, use more secure.
Note: The output load can not be shorted, not with a motor and other inductive load
* PIR Module, photoresistance (CDS)
This is a professional Step Down DC / DC Converter circuit.
Input Voltage: 4 - 25 VDC;
Output Voltage: 1 - 10 VDC ( Default ) or 1.22 - 6.7 V ( more high-precision )
( Adjustable ) (To work normally, the input voltage must be at least 1.55V higher than the output voltage)
A professional adjustable Step Down LM2596 DC-DC Voltage Converter
* Input Voltage: DC 8 - 45 V
* Output Voltage: DC 7 - 19 V ( adjustable )
* Maximum Current: 3 A ( 30W ,Under normal circumstances please 2A Current )
* Operating Temperature: Industrial (-40 to +85 )
This is a professional adjustable Step UP DC-DC Voltage Vonverter ( not included )
* Dimension: 58 x 30 x 7.8 mm ( 2.3x1.2x0.3 inch L*W*H )
* Input Voltage: 8 - 17 V
* Output Voltage: 15 - 20 V ( adjustable )
* Maximum Current: 2 A ( 40W )
* efficiency: 93 - 95 % ( very HIGH, low heat power )
Photo Control 12 Volt Switch Circuit
Dimension: 51 * 28 * 14 MM (L*W*H)
Input Voltage: 10- 18 V DC
Solar Charger Regulator 12V 5A
- Max solar panel Load Current : 5A
- Max battery output Current : 8A
- Over-charging Protection : 13.8V;
- Reconnected Voltage: 12 V;
VOICE ACTIVATED & LIGHT CONTROL SWITCH
- Input Voltage: DC 10-14V
- Max Output Current : 7A (Under 28 , higher temperature, lower maximum output current)
- Max Output Power: 90W (Under 28 )
- Sound Sensing Distance: >5m
- Delay Time: 10 - 37 seconds adjustable
- Reverse Connection Protection: Yes
- Indication of Switch State: LED indicator with two colors, green refers to on and red to off.
10W Solar Panel ( NOT included )
