0.01HZ - 2.4GHZ precision frequency counter meter
0.01Hz - 2.4GHz Precision Frequency Counter Meter
This high-resolution, multifunctional frequency counter benefits from an integral intelligent microprocessor and wide measurement range of 0.01Hz to 2.4GHz
* Frequency, period and equal-precision measurement
* 3 step function selection, work state, unit and eight-digit LED display
* All functions are dependent on a single CPU
* Crystal controlled temperature circuit reduces errors caused by temperature drift by providing constant compensation for temperature change
* The B channel input has an attenuator (x1, x20) and AC/DC coupling for a low-pass filter
* Wide measurement range of 0.01Hz to 2.4GHz
* Continuously variable gate time of 100ms to 10s
If you're looking for a highly stable performance at a price that won't break the bank, this is the frequency counter for you
0.01Hz-100Hz (not inc 100Hz)
Channel A (0.01Hz~50MHz) Input Characteristics
* Frequency range: DC couple 0.01Hz to 100Hz, AC couple 100Hz to 50MHz
* Sensitivity: "AC" 100Hz-50MHz 120mVrms, "DC" 0.01Hz-1Hz 500mVp-p, 1Hz-100Hz 80mVrms
* Max. safety voltage: 30V (DC/AC peak)
Channel B (50MHz~2.4GHz) Input Characteristics
* Frequency range: from 50MHz to 2.4GHz
* Sensitivity: 50mVrms~300mVrms
* Resolution: dependent on gate time control setting
* short time stability: 3X10-9/second
* Long time stability: 2X10-8/month
* Temperature drift coefficient: 1X10-7, 10 C ~ 40 C
* Line voltage variation: 1X10-7 for line voltage 10%
* Gate time: Continuously variable, from 100ms to 10s
* Display: 8 digit, 19X12.5mm LED with steps, frequency, period, kHz/s and MHz/ ms, indicator
* Precision: standard time error (t) x frequency (f) 1d
* Power supply: 220V/110V 10%, 50Hz or 60Hz 10%
* Operating environment:-5 C ~50 C, 10 ~ 90% RH
* Storage environment: -40 C ~60 C, 5 ~ 90% RH
* Dimensions: 270mm X 215mm X100mm

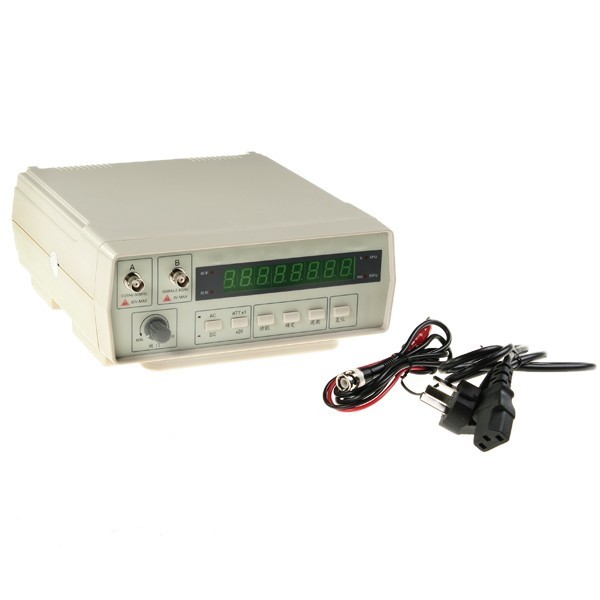

The frequency meter is brand new and boxed and comes with power cord, test probe and instruction manual
