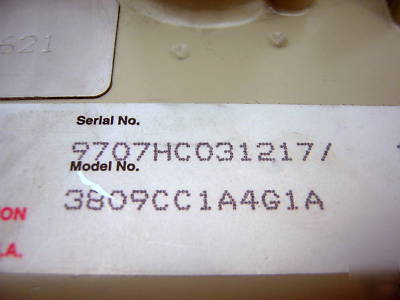

> Brooks 3809 thru-flow v/a meter stainless 3809CC1A4G1A

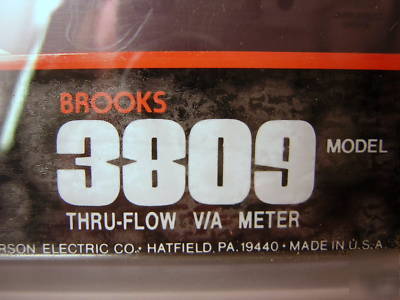

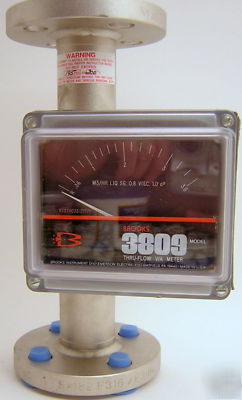

Brooks 3809 thru-flow v/a meter stainless 3809CC1A4G1A
3809 Thru-Flow V/A Meter Stainless Steel 1-3/8" Bore 3809CC1A4G1A NEW
Models MT 3809 Variable Area Flowmeter is a rugged, all metal flowmeter offering 2% full scale accuracy.
Flow rate indication is provided by means of magnetic coupling where a magnet, encapsulated in the float, is coupled to a rotatable magnet located in the rear of the indicator, thus turning the dial indicator mounted on the meter. There are no

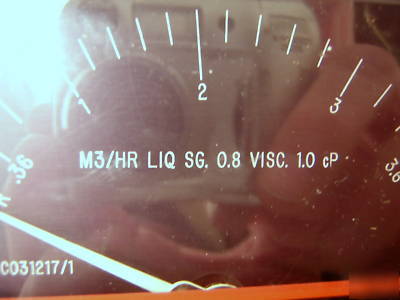

The Model MT 3809 is constructed with stainless steel components for measuring a variety of gas and liquid applications. This meter is calibrated to measure liquids with a 0.8 viscosity and 1.0 cP.
* Mfg: Brooks Instrument Co.

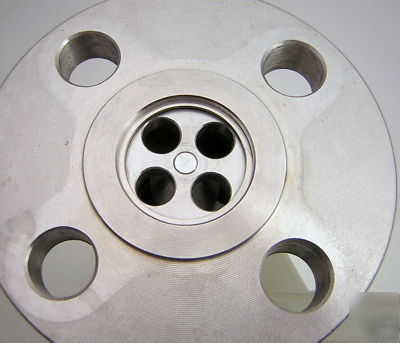

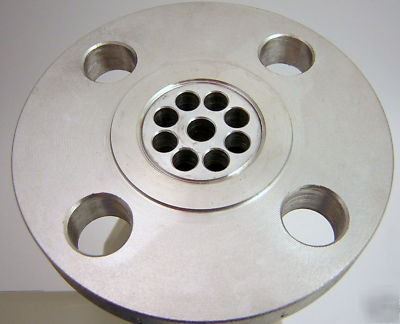

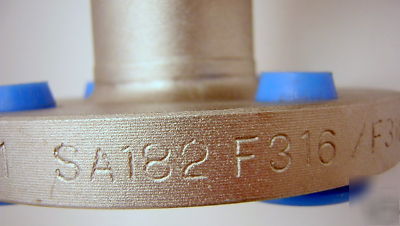

* Size: Flanged 150 SA182F316/F316L B16 F66167
Electronics designed with either intrinsically safe or explosion proof construction to meet UL (US & Canada) ATEX certifications and CE requirements
Why pay the dealer price of $1500+ when you can get it here for less and have it delivered to your door?
