> Glynn-johnson FB6 manual flush bolt rod metal fire door
Glynn-johnson FB6 manual flush bolt rod metal fire door
For single manual, metal door. Rated 3 hour door. Non-handed.
The GJ FB6A manual flush bolt, with rod, fits standard ANSI preparation for metal doors, and is listed for use on all (A, B, C, D and E labeled) metal fire doors in the United States and Canada.
The FB6A meets Federal Specification #1049, and is equipped with a spring loaded snap action lever. When the active door is opened, the lever can be moved to the up position, retracting the bolt and allowing the inactive leaf to be opened. When the inactive leaf is closed, the lever can be moved to the down position, projecting the bolt into the head frame and securely locking the inactive leaf.
The FB6A is non-handed, with a 5/8 throw and a 7/8 vertical adjustment.
The FB6A is made from forged brass and is available in US10 (satin bronze) finish.
FB6A for single-point latching, single bolt only.

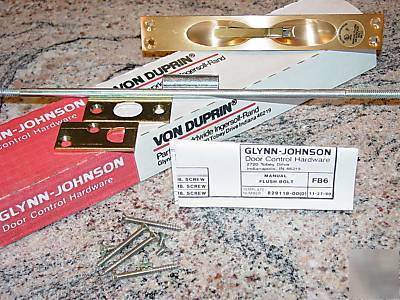

MADE IN U.S.A. FB6 MANUAL FLUSH BOLT INSTALLATION INSTRUCTIONS AND TEMPLATE INCLUDED ORIGINAL COMPLETE KIT WITH ALL MOUNTING HARDWARE INCLUDED CONDITION: NEW IN ORIGINAL GLYNN-JOHNSON BOX PICTURE IS OF THE ITEMS YOU WILL RECEIVE ADDITIONAL PICTURES AVAILABLE UPON REQUEST Product Information:
* Box reads: GLYNN-JOHNSON Door Control Hardware, VON DUPRIN Part of worldwide Ingersoll-Rand, Glynn-Johnson, 2720 Tobey Drive, Indianapolis, Indiana 46219
* Box label reads: GLYNN-JOHNSON, FB6A - US10
* Sticker reads: GLYNN/JOHNSON, UL LISTED, F, MANUAL FLUSH OR SURFACE BOLT, 50 L1
* Bolt Housing: (4) 8-32 x 1 1/2" F.H. Comb. Screw
* Strike: (2) 8-32 x 11/16" F.H. Comb. Screw
* Guide: (2) 8-32 x 11/16" F.H. Comb. Screw
Questions: What size is it and what is the length of the rod? Answers: The face plate is 6 3/4 inch x 1 inch, and the rod is 1/4 inch x 10 9/16 inch with 1 1/4 inch threaded adjustment. If you are looking to spend pennies on the dollar for high quality, architectural specialty door control hardware, we have it here for you.
Quality hardware for superior door control.
Glynn-Johnson has been providing the highest quality door control hardware for over 75 years. Designed to meet the requirements of hardware specifiers, Glynn-Johnson door control products deliver consistent quality and performance. Known in the industry as "the overhead door holder specialists," Glynn-Johnson uses state-of-the-art technology and manufacturing processes. Glynn-Johnson manufactures a full line of overhead door holders and push/pull latches, which are available in a variety of finishes and configurations to meet the most demanding door control applications.
