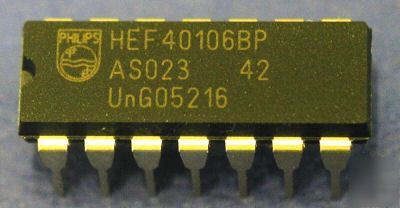

HEF40106 HEF40106BP inverting schmitt trigger 5PC fl,us
Each circuit of the HEF40106B functions as an inverter
with Schmitt-trigger action. The Schmitt-trigger switches at
different points for the positive and negative-going input
signals. The difference between the positive-going voltage
P) and the negative-going voltage (VN) is defined as
This device may be used for enhanced noise immunity or
to square up slowly changing waveforms.
