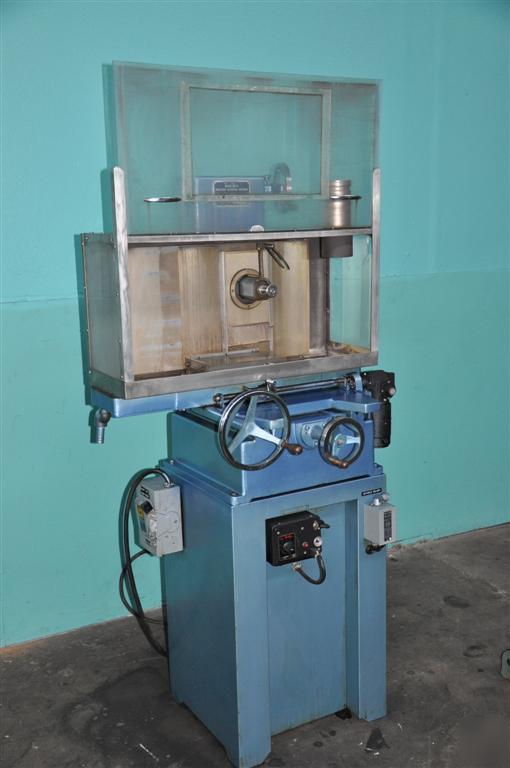

Micro-matic slicing - wafering grinder - w/ creep feed
MICRO-MATIC SLICING & WAFERING GRINDER
USED MICRO-MATIC WAFERING GRINDER with CREEP FEED
DESIGNED TO SLICE CERAMICS, QUARTZ AND OTHER EXOTIC MATERIAL
THIS GRINDER HAS BEEN CUSTOMIZED FOR PRECISION SLICING WITH A DIAMOND WHEEL
THE X-AXIS HAS A VARIABLE SPEED DRIVE UTILIZING A BOEHM DRIVE MOTOR AND CONTROL
TRANSVERSE WAYS ARE DOUBLE VEE (VV) MEEHANITE INSERTS INSTEAD OF FLAT SURFACES WHICH DEPEND UPON AN UNSTABLE JIB FOR ALIGNMENT AND ACCURACY.
ANTI-FRICTION BEARINGS ARE USED WHEREVER POSSIBLE TO INSURE EFFICIENT, TROUBLE-FREE OPERATION.
ALL SLIDES AND BEARINGS ARE CAREFULLY PROTECTED TO EXCLUDE DUST AND GRIT.
CASTINGS ARE SPECIALLY HEAT TREATED TO INSURE DIMENSIONAL STABILITY.
FEED SCREW THREADS ARE MACHINED TO STRICTEST TOLERANCES.
ALL ALIGNMENTS ARE CHECKED WITH SENSITIVE ELECTRICAL INSTRUMENTS.
MOTOR DRIVE DYNAMICALLY BALANCED
VERTICAL: 12" UNDER 7". GRINDING WHEEL
GRINDING WHEEL: 7" DIAMETER, 1/2" WIDE, 1 3/4" HOLE.
TABLE: 5 3/4" x 121/4".(3/4" TEE BOLTS)
3/4 HP, 3450 RPM, 115/230 VOLT, SINGLE PHASE
LONGITUDINALLY 45", TRANSVERSELY 38".
DIMENSIONS: 33" wide x 40" deep x 38" high.
X-AXIS BOEHM VARIABLE SPEED DRIVE & MOTOR
5 x 10 ECLIPSE MAGNETIC CHUCK
PLEXIGLASS ENCLOSURE WITH SLIDING DOOR
