Miller 903701 maxstar 200 sd dc tig and stick welder
Miller 903701 Maxstar 200 SD DC Tig and Stick Welder

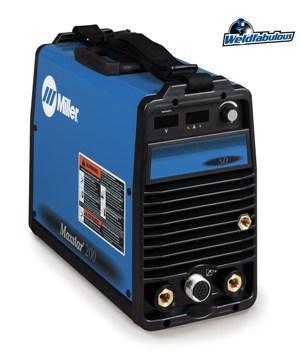

Miller Electric # 903701 Maxstar 200 SD
NEW! Blue Lightning - High Frequency Arc Starter for non-contact arc initiation. More consistent arc starts compared to traditional HF arc starters. Greater reliability and no maintenace on solid state components. Preset parameters for tungsten sizes from .020 - 1/8 inch provide optimized starting for applications from thick to micro thin material. For unique applications, custom settings are programmable.
Lift-Arc start provides TIG arc starting without use of high frequency.
NEW! Complete water-cooled packages One stock number provides all the necessary items required for a water-cooled TIG welding system.
Portable in the shop or at the job site - at 37lb the unit is easily moved from location to location.
Tailored arc control (DIG) allows the arc characteristics to be changed for specific appications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010.
Hot Start adaptive control provides positive arc starts without sticking.
Low OCV Stick is a simple design that reduces open-circuit voltage to 9-14 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
Auto-Line provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or the job site.
Fan-On-Demand operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine.
Keeps output of the power source constant regardless of fluctuation in input power 10%. Process
* Pulsed TIG (GTAW-P) with DX and LX models
* Requires 3- or 1-Phase Power
* TIG: 175 A at 17 V, 60% Duty Cycle (1 or 3-Phase)
* Stick: 150 A at 26 V, 60% Duty Cycle (1 or 3-Phase)
