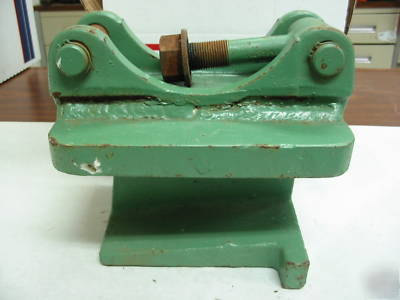

New cleveland ra 5500 rotary air vibrator + wedge mount

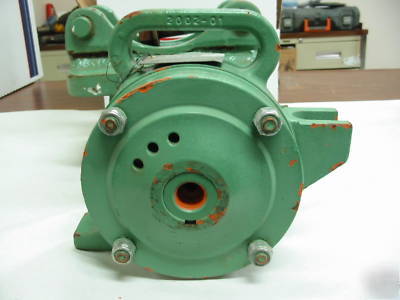

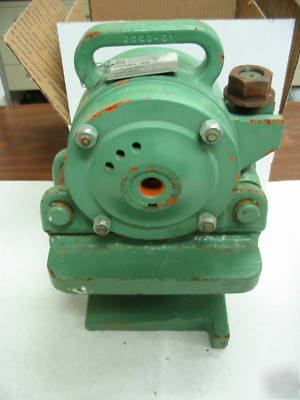

You are considering a Cleveland, High-Frequency Rotary Air Vibrator. This item is unused surplus. The body shows some scratching and paint chipping from being moved around.
* Mfg. For: Cleveland Vibrator Co.
* Cleveland Model No: RA 5500

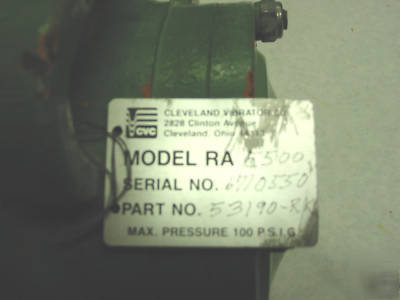

I talked to one of the Tech people at Cleveland Vibrator to obtain the specs for this vibrator. He informed me that these vibrators were manufactured for Cleveland, by Martin Engineering. They are exactly the same as the Martin CCR-5500 "Vibrotor" High-Frequency Pneumatic Vibrator. In fact, Martins part number CCR-5500 is cast into the housing and the Cleveland tag was wire tied to the handle. You can even see the Martin "orange" paint in spots where the green has chipped off.
Here are the specs for this Vibrator from the Martin website:
Ideal for hoppers, bins, railcars, chutes, molds, screens, and tables to keep materials flowing as they should. Also great for use in pre-cast concrete applications.
* Generates Multiple vibrations on each orbit
* Bearing-Free design that extends service life
* Performance @ 20 PSI: 6,600 VPM, 1,560 Lbs Force, 32 cfm
* Performance @ 40 PSI: 10,000 VPM, 3,582 Lbs Force, 42 cfm
* Performance @ 60 PSI: 12,500 VPM, 5,596 Lbs Force, 55 cfm
* Performance @ 80 PSI: 14,000 VPM, 7,020 Lbs Force, 58 cfm
You can download the full spec sheet with dimensions and operators manual at: http:// /products/martin-vibrotor-high-frequency-pneumatic-vibrators
