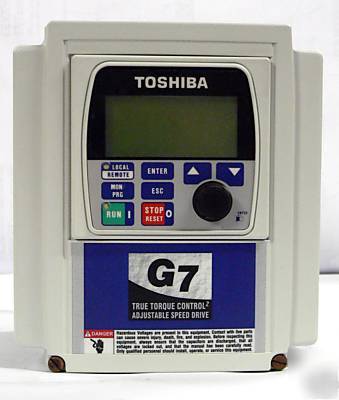

New in box 10HP toshiba G7 inverter drive VT130G7U4110B
NEW SURPLUS IN FACTORY PACKAGING
Estimated Retail Price: $ 2,790.00
110% continuous, 150% for two minutes up to 100 HP, consult factory for ratings above 100 HP
Rotary Encoder integrated into EOI, 0 - 10 V, + -10 V, 4-20 mA, Binary Input, Motorized Potentiometer Input
0.01 Hz Operation Panel, 0.1 Hz Analog Input, 10 to 12-bit A-D Converter
Three Output Contacts programmable to 60 functions
Two 4 - 20 mA/0 - 1 mA outputs programmable to 33 functions
Optional Three-Channel Signal Isolation for 4 - 20 mA input and the AM and FM outputs rated at 750 V
DC Bus Control-Power for units up to the 6750B, allows control power ride-through during momentary power loss
ASD can clear fault upon trip automatically. Programmable to 10 times with wait time up to 10 seconds between retry
Temperature: -10 to +40 C, 14 to 104 F, Humidity: 95% non-condensing
LCD EOI (Liquid Crystal Display / Electronic Operator Interface)
124 x 64 graphics capable, back-lit LCD can display multiple parameters simultaneously. Keypad may be operated from an external power source. Software is flash upgradeable.
Encoder with Integrated Enter Key for Frequency Setting and Parameter adjustments
Completely configurable along with Scaling Factor Multiplier, Current Display selectable between Amps or %, Voltage Display selectable between Volts or %
