Architechural drawing board with draw-to-scale software
This kit contains the Bird' Eye View Perspective Drawing Board for A3/A4 and the very useful Draw-to-scale software. (Individual cost of this software is $55.00)
Remember this is a limited offer only. So Hurry!
The Bird' Eye View Perspective Drawing Board is ideal for drawing small objects as it produces a bird's eye view of items such as furniture, industrial products or other goods.

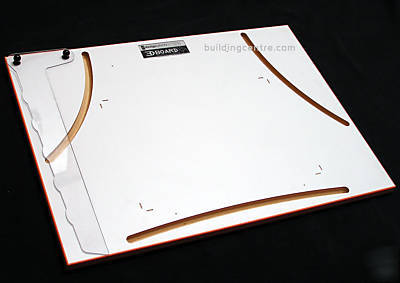

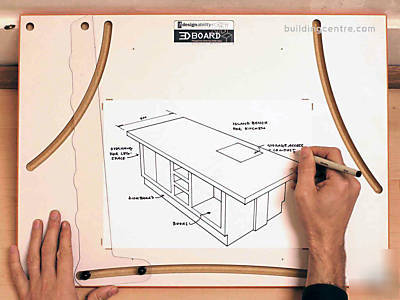

The perspective is created by using a specially designed tracking rule, whose phenolic tracking balls fit into the three specially crafted (routed), slightly curved side slots. Thus, when you draw lines using one side of the tracking rule, the perspective effect is immediately generated. To draw a traditional 2D drawing using the same board, you merely place the tracking rule on the board with tracking balls positioned over the straight edge of the board, which then turns tracking rule into a T-guide.
The Bird's-Eye-View Board is ideal for developing ideas before you make them or if you need to show, present or explain your ideas or concepts to someone else. The Bird's-Eye-View Board was originally designed for school students, to help them confidently produce their design ideas. Thus, using this drawing board is the fastest and easiest way to generate effective perspective drawings.
The Bird's-Eye-View Board is intuitive, easy to master and is ideal for year 7 - 12 students, helping those who may not be gifted at drawing, to develop their design concepts. The exercise book supplied makes learning to use the board fun and easy. These boards are already being used in over 100 schools across Australia. Being easy to use for students, also means that adults will master the use of these drawing boards quickly and be able to produce perspectives with ease and great productivity.
This Large size drawing board is suitable for A3 and A4 paper:
* dimensions: 750mm x 550 x 16mm
* suits most serious practitioners, who produce drawings of large format.
* manufactured from durable Melamine covered MDF with protective PVC edging
Also available in Standard size suitable for A4 paper:
* dimensions: 580mm x 390mm x 16mm
* suits most jobs and student work
Bird's-Eye-View Perspective Drawing Board Package contents:
* Tracking Rule - made from tough 25mm polycarbonate material it is guaranteed not to break through normal use. Using phenolic tracking balls, the tracking rule fits into the three side slots so that when you draw a line, it always aligns to the "vanishing point" to give you a perfect perspective drawing.
* Ellipse Template - made from tough 1mm polycarbonate material it is guaranteed not to break through normal use. This ellipse template was designed solely for use with the Bird's-Eye-View Board and by following simple rules, you will be able to draw circles, cylinders, wheels, cut outs and radiused curves in perspective.
* Exercise Book - only to be used on Bird's-Eye-View Board. The book contains 30 easy step-by-step exercises to build confidence using your Bird's-Eye-View Board and ellipse template. These exercises are designed to help you think and draw in 3 dimensions. You can fix each page to the board and finish the shape by following the instructions.
* Carry Case - made from hard wearing, tough weave nylon with a heavy duty zip, strong handles and an adjustable shoulder strap. Designed to protect your drawing board during transportation or in storage. Provides convenient transportation for students and professionals.
The Draw-to-scale CD for PC's:
This "optional extra" software calculates the dimensions for you to produce a perspective "to scale". You simply enter the overall dimensions of the object you that you wish to draw, and the Draw-to-scale CD will give you the line lengths that you will need to draw. You can even do a drawing on a board and the calculator will tell you what size it is in real life!! Thus, the Draw-to-scale CD enables you to draw accurate perspective drawings. It works for both versions, Bird's-Eye-View board and Eye-Level Board, of these perspective drawing boards.
The Draw-to-scale CD is designed to be loaded onto your accompanying desktop computer or laptop.The CD software is designed for PC systems and runs under Windows 98/Me/2000/XP environment.
