Kay-ray sensall smart density transmitter detector 3680

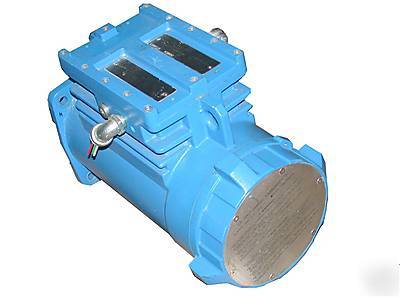

KAY-RAY SENSALL SMART DENSITY TRANSMITTER DETECTOR 3680
The 3680 Smart Density Transmitter redefines the standard for gamma-based density measurement. With a completely non-intrusive system, it is not affected by pressure, viscosity, corrosives or abrasives. It simply mounts around the existing process pipe eliminating the need for pipe modification and process downtime during installation.
* Non-contacting design makes the 3680 ideal for abrasive, corrosive, high pressure and high temperature applications.
* Integrated transmitter/detector reduces installation and wiring costs.
* Accuracy up to 0.0001 g/cc.
* Measurements in Density Units, lb/gal, % by weight solids, Brix * PVT (Poly Toluene) scintillation detector resistant to moisture and shock damage.
* Accepts All Voltages From 90 to 264 VAC 50/60 Hz and/or 18 to 36 VDC, should loss of AC power occur, the unit switches to DC power automatically.
* Easy-to-use English language user interface makes for simple set-up and calibration through the HART Communicator.
* Self-diagnostic and alarm history software reduce troubleshooting time.
