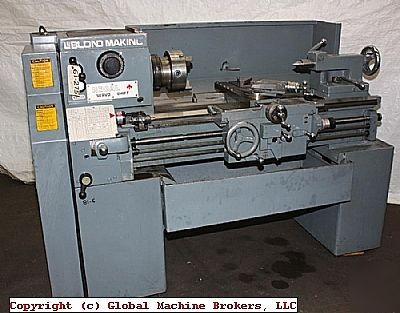

Leblond makino engine lathe model no. 15" 1983
Leblond Makino Engine Lathe Model No. 15" 1983
Model No. 15" Regal Servo-Shift
Maximum Distance Between Centers: 30"
Hole Thru Spindle: 2-17/64" Diameter
Threading Range, Inch: 2 - 112 TPI
Threading Range, Metric: .25 - 12 mm/P
Feed Rates: .0018" - .104" / Rev.
Headstock & Tailstock Center Tapers: #4 MT
Overall Dimensions: 40" x 80" x 54" High
Machine Weight, Approx.: 2450 Lbs.
5C Collet Draw Tube & Collet Nose
7.5 Max. Rated HP, 5 HP Continuous Duty 230/460/3/60
