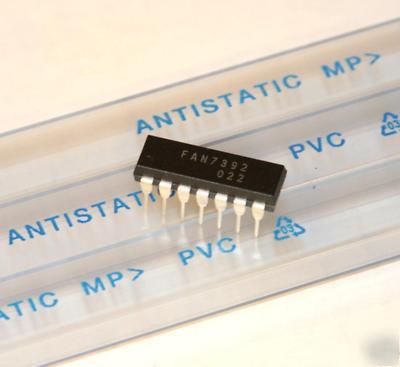

FAN7392 mosfet 3A 600V gate driver hi/lo side DIP14 X2
High Current MOSFET / IGBT GATE DRIVER POWER IC
5V and 3.3V logic compatible inputs
SEE APPLICATION SCHEMATIC IN DATASHEET
Turns MOSFETS hard ON, to attain their lowest specified Rds(on). (good luck attaining it otherwise).
Turns them ON FAST, and turns them OFF FAST. It will both source and sink current from MOSFET gates to provide fast switching.
Will drive MOSFETS whose GATE is at +600V with respect to the IC's ground pin. And will create a bootstrap driving voltage 12-15 V above the 600V to charge the gate.
Designed to reduce both conduction losses (by fully enhancing the channel), and switching losses (by reducing rise/fall times to their specified minimum) in MOSFETS and IGBTs.
