Hydraulic cylinder, tierod, 1 1/2" bore x 2" stroke

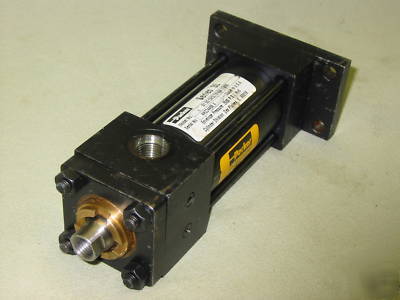

HYDRAULIC CYLINDER, TIE ROD STYLE 1 1/2" BORE X 2" STROKE
PARKER #01.50 CH3LTSMA 2.000 SERIES 3L
PORTS, THE PORTS ARE 180 DEGREES APART ON THIS CYLINDER, THE PORT ON THE PISTON END IS 1/2-20 AND HAS AN ADAPTER FOR 9/16-18 THE TOP PORT IS 9/16-18
MEASURMENTS, OVER ALL LENGTH 7", FLANGE TO TOP 6 3/8", FLANGE IS 2" X 3 1/2"
