Protek 6510 100MHZ dual channel oscilloscope w/probe

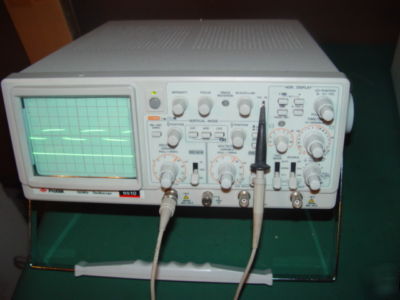

Protek 6510 100Mhz Dual Channel, Dual Trace, and Dual Timebase Oscilloscope w/Probe. This unit is in Excellent Working and Cosmetic Condition. Unit includes Power cord and x10Mhz Probe.
* Four traces may be simultaneously displayed in ALT-sweep
* Five vertical display modes: CH1, CH2, Dual, Add, Subtract
* Vertical mode triggering for displaying 2 unrelated signals
* Trigger hold-off circuit for synchronizing complex waveforms
* 12kV acceleration voltage for bright displays of low duty cycle signals
* TV Synchronization for either line or field patterns
* 20MHz bandwidth limit switch for triggering signals in a noisy environment
Vertical Amplifier (CH 1 and CH 2)
5 mV/Div to 5 V/Div in 7 calibrated steps, (X5 Mag 1mV/Div to 1 V/Div)
3.5 ns, X5 Mag: 20MHz Bandwidth: 17 ns
CH1, CH2, Add, Subtract, Dual (Alt/Chop)
50ns/Div to 0.2 s/Div in 21 calibrated steps (1-2-5)
Continuously adjustable to > 2X sweep time
50ns/Div to 10 s/Div in 8 steps (1-2-5)
Continuously variable from 0.2 s to 2s
A, B, A alt B, B triggered, X-Y
CH1-X axis, CH2-Y axis Sensitivity
Same as CH1 vertical amplifier
Int (10MHz to 100MHz): 1.5 Div
Maximum Input Volts: 400V DC or AC peak
5V P-P Intensity increases with a negative going voltage input
6" rectangular CRT with internal graticule. (1 Div = 1cm)
AC Input Voltage: 100V, 120V, 220V, 240V selectable
0 to 40 C at 35% to 85% relative humidity
Manual, 1 AC Power cord, (2) X10 Probes
Click Here for Product Manual!!!
