1,500 ton 33' cincinnati mechanical press brake JR036

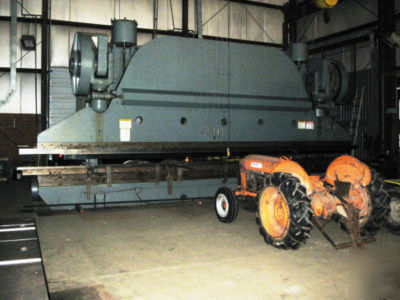

1,500 TON 33' CINCINNATI MECHANICAL PRESS BRAKE
New 1954, Model Series 50-20-Special
Ram & Bed Machined For Angles - Set Of Angles
Twin End Drive w/Gear Guards - Automatic Lube System
Air Assist Friction Clutch w/Remote Foot Pedal
Tonnage Rating @ Bottom Of Stroke......... 1,500 TONS
Tonnage Rating @ Mid Stroke............... 1,500 TONS
Bending Capacity (Max).................... 12' x 1"
Overall Length Of Bed & Ram............... 33'
Distance Between Housings................. 20.5'
Horns Approx. Measure..................... 5'-6"
Stroke Of Ram............................. 6"
Power Ram Adjustment...................... 6"
Strokes Per Minute........................ 5 SPM
Throat Depth.............................. 16"
Die Space (SDAU).......................... 16"
Standard Strokes Per Minute............... 20 & 5 SPM
Motor, Horsepower......................... 50 HP
Electrics................................. 220/440/3/60
Floor Space Required Approx............... 10' x 33'
Height Above Floor........................ 12'-9"
Weight, Approximately..................... 367,000 LBS
NOTES: Required Min. 6' Pit For Bed Plate, Found To
