5M rgb flash led strip dream-color chasing light 12VDC

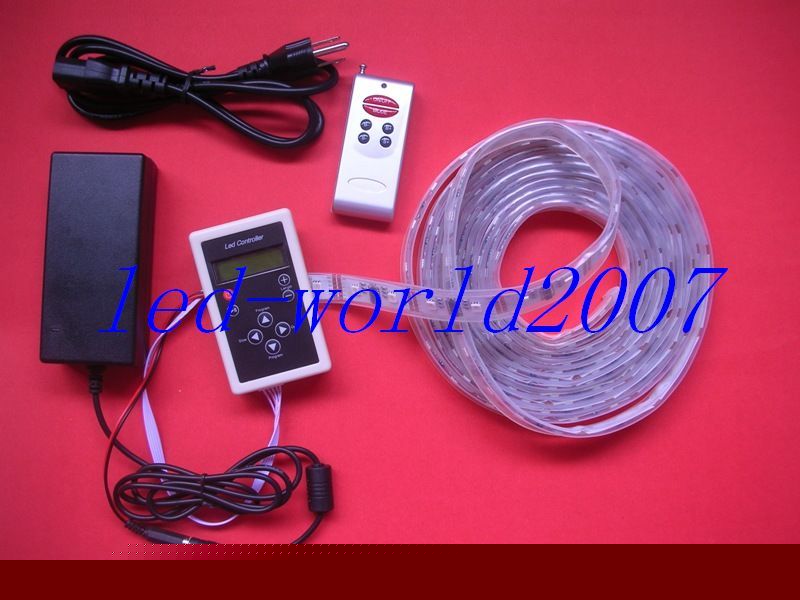

5M RGB Flash LED Strip Dream-Color Chasing Light 12VDC
This controller is designed for led production which use HL1606 as driver, it is good for light box advertisement, stage light, house decorating, and so on.
Working temperature: -20- 60
ON/OFF: ON/OFF button it can open or close led
anytime, when led is on the station of closing, The LCD will
display IC NUMBER: *** , *** is the value of current
MODE: Play/pause button, when you want to see the static affection of led ,you may press this button to pause.
S+: Speed quick button, the least number is 1
S-: Speed slow button, there are 100 step in all, the most number is 100
B+: Program choosing button, up direction,there are 83 programs in all.
B-: Program choosing button, down direction.
OUTPUT1&OUTPUT2 Description: L, K ,D, S is the corresponding signal of HL1606,which is L_I, CK_I, D_I, S_I.
PROGRAM Description: Condition A1 Blue LED A2 Red LED A3 Green LED
1. Supply voltage of this product is DC12V never connect to DC24V or AC220V directly;
2. Never connect two wires directly in case of short circuit;
3. Lead wire should be connected correctly according to colors that connecting diagram;
4. Warranty of this product is one year, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged.
1 x 12V 23A Battery for Remote Control
1X DC5V Power Supply for Strip
1 x DC12V 1A Power Supply for controller
