Jerome 631-x meter detector hydrogen sulfide analyzer

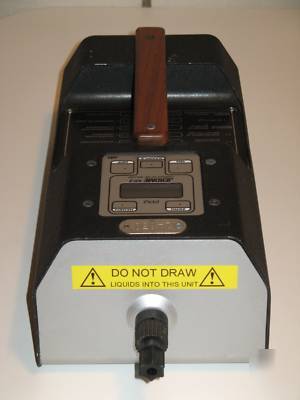

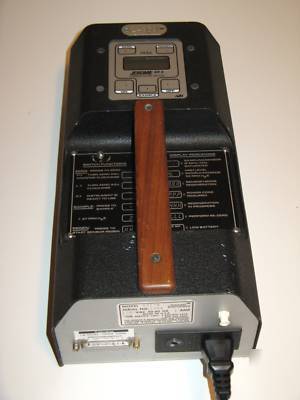

Jerome 631-X Hydrogen Sulfide Analyzer for sale. It is used and in nice condition. Calibration sticker reads CAL 2/21/03, CAL DUE 2/20/04. It turns on and functions properly. I will guarantee unit is not DOA upon arrival. It does come with power cord. When new these are valued over $10k! Save yourself some serious money right here!
You can find everything on the internet, here is some info directly from their site:
With the push of a single button, the portable Jerome 631-X hydrogen sulfide analyzer displays low-level concentrations in just seconds. It offers an analysis range of 0.003-50 ppm for odor and corrosion control, safety, and leak detection in such industries as wastewater treatment, oil and gas, pulp and paper, and farming. This simple-to-use instrument weighs only 7 pounds, utilizes an internal rechargeable battery pack or AC power, and is easily carried to suspected sources of hydrogen sulfide for detection and measurement. Locked in survey mode, the 631-X automatically displays hydrogen sulfide concentrations as quickly as every 3 seconds.
The Jerome 631-X utilizes a patented gold film sensor. The instrument s selectivity to hydrogen sulfide eliminates interferences from sulfur dioxide, carbon dioxide, carbon monoxide, and water vapors. When the sample button is pressed, an internal pump draws air into the instrument. Any hydrogen sulfide in the sample is absorbed by the sensor which registers a proportional change in electrical resistance. The hydrogen sulfide concentration is displayed on the LCD, where it remains until the next sample is taken.
Additional accessories are sold separately and available online so you can customize the Jerome 631-X to meet individual application needs. For unattended sampling, the instrument can be programmed by a computer using the Jerome Communication Software (JCS). A data logger plugs into the back of the instrument for data acquisition during portable surveys or unattended sampling without a computer. Recorded data can be downloaded later to a computer using the JCS software for analysis, printout, and permanent record keeping.
An available internal option board allows auto-zeroing, DC power operation, timed regeneration, and timed sampling during prolonged, unattended sampling periods. The option board also allows external fresh air solenoid support and 4-20 mA or 0-2 V analog output. Instrument calibration can be verified in the field using the Functional Test Module (FTM). A molded hard carrying case or soft field case give added versatility and organized storage for the instrument and its accessories.
Inherently stable gold film sensor

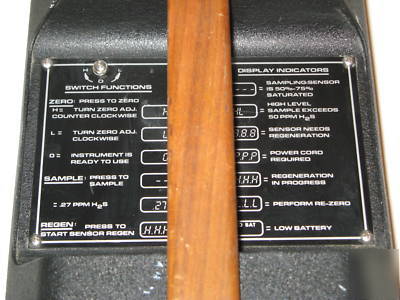

Pressure sensitive membrane switch operation
Rechargeable internal battery pack for portability
Wide detection range allows for multiple applications

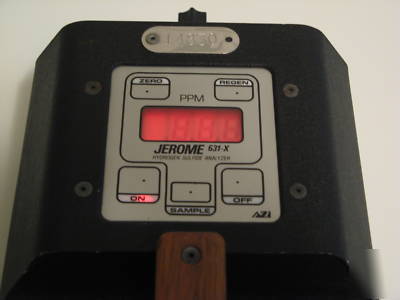

Automatic LCD backlight during low light conditions
Survey mode for rapid source detection of hydrogen sulfide concentrations
Microprocessor ensures a linear response throughout the entire range of the sensor
Jerome 631-X Specifications: Resolution 0.001 ppm at Range 0 to 1 ppm at Range 3
Precision 5% Relative Standard Deviation
Accuracy Range 0: 0.003 ppm at 0.050 ppm
Range 1: 0.03 ppm at 0.50 ppm
Response Time Sample Mode: Survey Mode:
10-50 ppm in 13 sec 10-50 ppm in 3 sec
1.0-10.0 ppm in 16 sec 1.0-10.0 ppm in 6 sec
0.10-1.00 ppm in 25 sec 0.10-1.00 ppm in 15 sec
0.001-0.100 ppm in 30 sec 0.001-0.100 ppm in 20 sec
Flow Rate 150 cc/min or 0.15 l/min

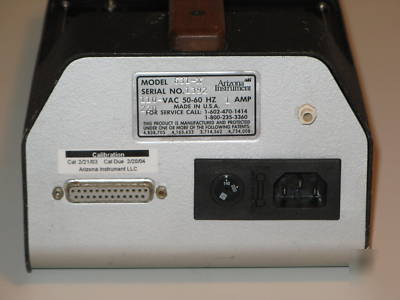

Power Requirements 100-120 V~, 50/60 Hz, 1 amp or 220-240 V~, 50/60 Hz, 1 amp
Internal Battery Pack Rechargeable nickel-cadmium (NiCad)
Environmental Range 0-40 C, non-condensing, non-explosive
Interface RS-232 PC using Jerome Communications Software
Dimensions 631-X: 6" W x 13" L x 4" H/ 16 cm W x 33 cm L x 10 cm H
631-XE: 7" W x 14" L x 7" H / 18 cm W x 35 cm L x 18 cm H
Overall you'll be more than happy with the quality of this product.
Seriously save yourself thousands of dollars right here and submit best offer!
