Krom-schroder pressure switch for gas & air - #DG500TG

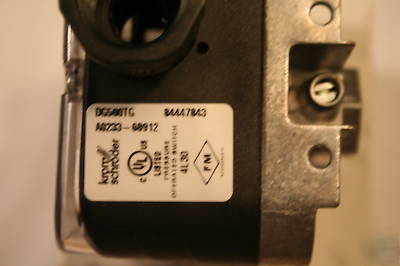

KROM-SCHRODER - PRESSURE SWITCH FOR GAS AND AIR
DESIGNATION: DG500TG - CAT. 84447843
Supply Voltage: 12-250 Vac; 50/60 Hz
Switch Contact Rating: 0.1 A resistive or 0.05 A inductive
Electrical Connection: Gold plated contacts for voltages < 30 V
* 1/2" NPT conduit connection
* 1/4" NPT female connections (2) for pressure (high differential) side of switch
* 1/8" NPT female connection for suction (low differential) side of switch
* 11/32" (9 mm) diameter test hose fitting on pressure (high differential) side of switch

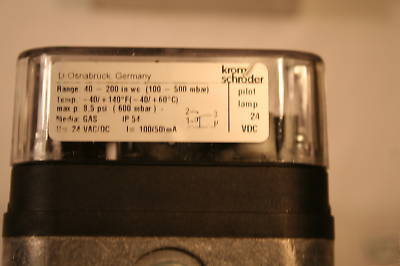

Adjusting Range: 40 to 200" WC (100 to 500 mbar)
Ambient and Gas Temperature Range: -40 to +140 deg. F (-40 to +60 deg. C)
Maximum Storage Temperature: 158 deg. F (70 deg. C)
Maximum Surge Pressure: 30 psig (2 bar) for a duraction < 15 minutes
