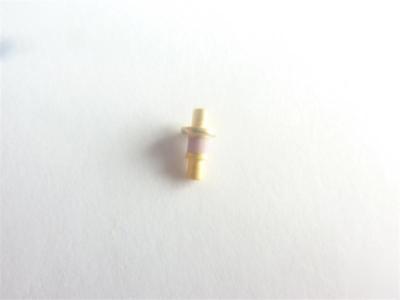

3A614A shf microwave diodes 2PCS
3A614A SHF MICROWAVE DIODES 2pcs
* EFFECTIVE MULTIPLICATION TO 90 GHZ
Microwave diodes are designed for operation in frequency multipliers of dm, cm and mm-wave bands.
2. SPECIFICATIONS (T=25 10 C)
- cut-off frequency at reverse voltage UR=6 V, GHz
- terminal capacitance at UR=6 V, pF
- case capacitance at any frequency from the range of 1 30 MHz, pF
- maximum continuous power dissipation, W
- reverse DC voltage at reverse current IR, V
