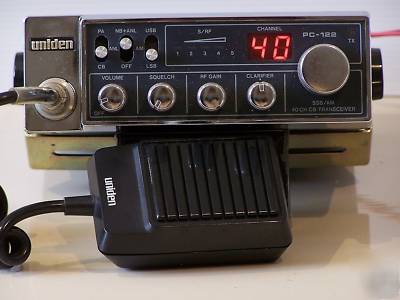

Uniden pc-122 am ssb 40 ch cb radio 27MHZ - 4WD truck
This Cb radio is a great little rig for your car, caravan, 4WD or even your house. Keep one in the car and one in your home and save on expensive phone bills. A fun way to keep in contact with your friends and family.
No License Required! Great Mobile or Home Base Unit. Talk all around the world on Sideband. 27MHz CB can work at a much further distance than UHF, making it a great way for people in country and rural areas to communicate and stay in touch during fire season. Run it off a car battery and charger and you'll still be able to communicate during power outages.
This sexy, compact CB radio is a little beauty. Comes with accessories including an original Uniden dynamic microphone, mounting bracket, mounting knobs and a brand new heavy duty fused power cord. The Owner's Manual can be downloaded here http:// .au/resources_main/pdfs/PC122.PDF
This CB has been repaired, tuned and frequencies have been aligned by radio tech Peter Murphy. Sounds great! Brand new LED channel display.
THE UNIDEN PC SERIES OF CB RADIOS SETS A NEW STANDARD IN CITIZENS BAND COMMUNICATIONS FOR PERFORMANCE AND DEPENDABILITY. THEY OFFER YOU CLASSIC STYLING, GREATER CLARITY, FULL FEATURES AND ENHANCED PERFORMANCE. THE PC 122 OFFERS ALL THE QUALITY THAT HAS MADE UNIDEN A LEGEND AMONG PROFESSIONAL DRIVERS. IT'S TOUGH. IT'S POWERFUL. IT'S EVERYTHING YOU'D EXPECT FROM UNIDEN.
* Full 40 Channel Operation -PLL frequency synthesizer circuitry permits transmission and reception on all 40 AM/USB/LSB Channels without the purchase of additional crystals.
* On/Off/Volume Control - Single control adjusts the volume, and turns the unit on and off.
* RF Gain Control - Adjusts receiver sensitivity to incoming signal. Allows you to decrease sensitivity for strong signals and increase for weaker ones.
* Clarifier Control - Allows you to fine tune incoming signals for clearer reception. Also allows you to adjust tone characteristics.
* S/RF Meter - Indicates relative RF output power when transmitting and input signal strength when receiving.
* Channel Indicator - Two seven segment LEDs indicate the channel number in use.
* TX Indicator - LED indication of the transmission mode of operation
* NB/ANL Switch - Single switch controls Noise Blanker (for reducing engine interference) and Automatic Noise Limiter (for reducing annoying background interference).
* PA/CB Switch - One switch allows you to instantly select either PA or normal CB operation.
* Mode Selector - Selects AM, USB or LSB modes
* Squelch Control - Reduces or eliminates background noise in the absence of an incoming signal. Allows you to selectively filter long range transmissions and other radio interference.
* Remote Speaker Jack - An external speaker jack located on the rear panel, which can be used for remote monitoring.
* 208mm long x 154mm wide x 53mm high
Phase Locked Loop (PLL) synthesizer
Plug-in type; dynamic with push-
to-talk switch and curled cord
AM & SSB with maximum audio output, 0.6A
LED displays; channel, TX and mode
SSB: Better than .25 uV for 10 dB (S+N)/N
6 dB @ 4.2 kHz, 60 dB @ 7.0 kHz
Adjustable for optimum reception
(AGC) - less than 10 dB change in
audio output for inputs from 10 to 50K microvolts
Adjustable - threshold less than .5 uV
RF type, effective on AM and SSB
less than 10% at 3 Watts output
8 ohnls; disables internal speaker when
I've always found these to be a very sturdy, reliable CB radio. Modulation and signal on this CB is very crisp and clear, 10/10 for performance.
Check out a review here http:// /Radio%20Reviews/Uniden%20PC122XL/Uniden%20PC122XL%20Review.htm
